The Chessboard

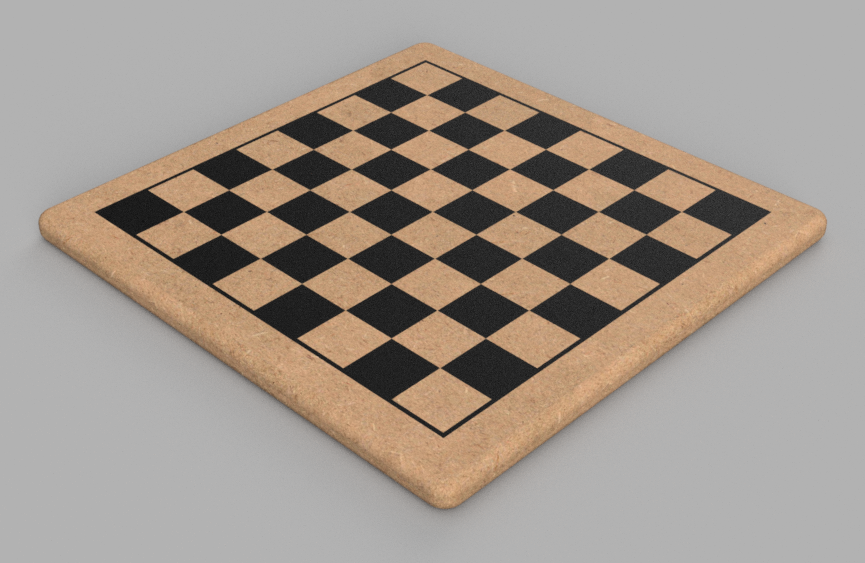

A cheap MDF chessboard had been used.

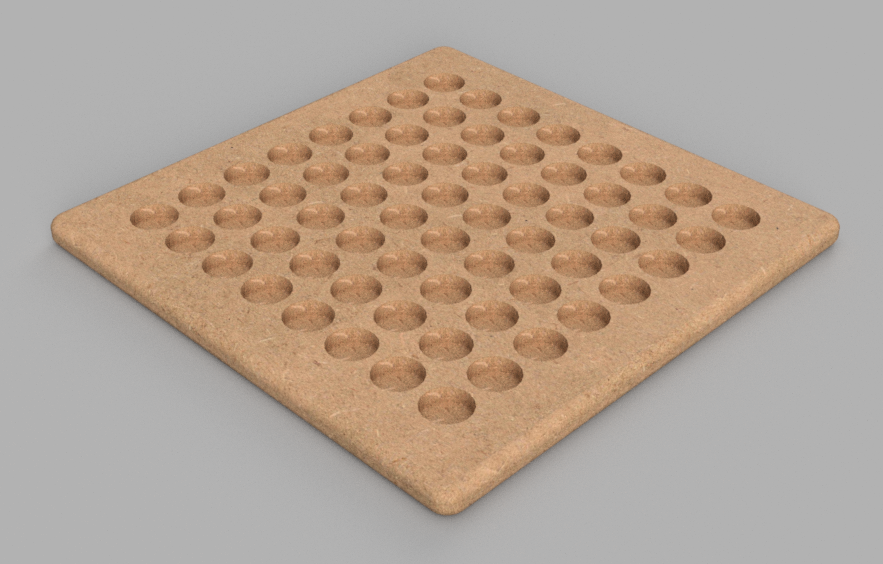

A total of sixtyfour holes had been made on the back of each square, in order to make room for the sensor boards and guarantee a minimum distance between the top plane (where magnets will be) and the sensor itself.

Tip

For this operation a CNC is the best solution, unfortunately not everyone has got one in their garage… In this case a good old hand drill, with a 25mm forstner bit, will do the job.

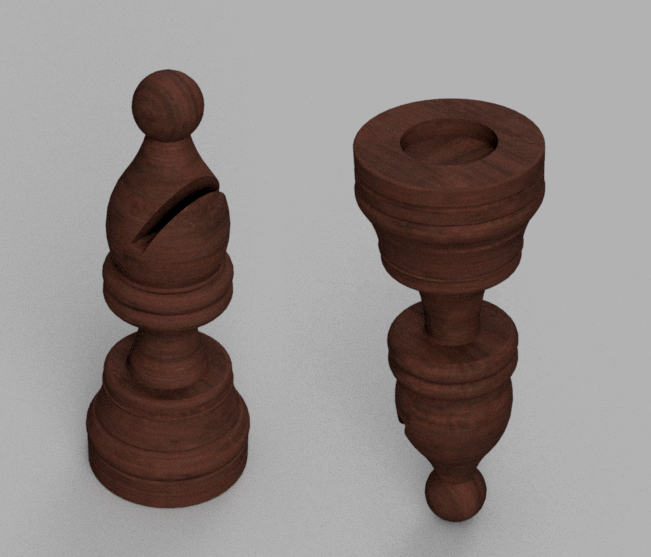

In addition, every piece has to be modified by making a hole underneath the base, there is where the magnet will be glued.

The Wiring Madness

Each sensor requires a couple of wires and they have to be connected in a grid configuration.
